ANPVS 14 Dual High Fom White Phosphor Force Multiplier Kit Turn Key
US NIGHTVISION
This is a Custom High FOM Turn-Key USNV Built Dual AN/PVS-14 Gen III System. This Amazing Dual Tube Night Vision System is a Precision & Professional grade piece of gear. Tubes are ELBIT Gen III Variable Gain / Auto Gated / New Production / Matched Hand-Select White Phosphor / Data Sheets Included
$2,640.00
ANPVS 14 Dual High Fom White Phosphor Force Multiplier Kit Turn Key
This is a Custom High FOM Turn-Key USNV Built Dual AN/PVS-14 Gen III System. This Amazing Dual Tube Night Vision System is a Precision & Professional grade piece of gear. Tubes are ELBIT Gen III Variable Gain / Auto Gated / New Production / Matched Hand-Select White Phosphor / Data Sheets Included
| AN/PVS-14 Dual High FOM White Phosphor Force Multiplier Kit (Turn-Key) - Specifications | |
|---|---|
| General Specifications | |
| Model | AN/PVS-14 Dual High FOM White Phosphor |
| Technology | Generation 3+ |
| Image Intensifier Tube | High FOM (Figure of Merit) White Phosphor |
| Magnification | 1x (compatible with magnifiers) |
| Field of View (FOV) | ~40° |
| Focus Range | 25 cm to infinity |
| Objective Lens | Multi-coated, high-performance optics |
| Diopter Adjustment | -6 to +2 |
| Optical & Performance Features | |
| Resolution | 64-81 lp/mm (dependent on tube quality) |
| Signal-to-Noise Ratio (SNR) | High SNR for enhanced low-light performance |
| Automatic Brightness Control (ABC) | Yes |
| Bright Light Cut-Off | Yes |
| Manual Gain Control | Yes |
| Power & Battery | |
| Battery Type | 1x AA battery (Alkaline or Lithium) |
| Battery Life | ~50 hours (Lithium) / ~30 hours (Alkaline) |
| Low Battery Indicator | Yes |
| Physical & Environmental | |
| Housing Material | High-durability composite |
| Weight | Approx. 335g per monocular |
| Waterproof Rating | Weather-resistant, submersible up to 1 meter |
| Operating Temperature | -51°C to +49°C |
| Mounting & Compatibility | |
| Helmet Mountable | Yes, includes standard dovetail or bayonet mount compatibility |
| Weapon Mountable | Yes, via appropriate adapters |
| Handheld Use | Yes |
| Compatible Accessories | Magnifiers, bridge mounts, weapon mounts, headgear |
| Included in the Turn-Key Kit | |
| Contents | - Dual AN/PVS-14 High FOM White Phosphor units - Bridge Mount for dual setup - Standard Helmet Mounting System - Protective Lens Covers - Soft Carry Case - AA Batteries - Lens Cleaning Kit - Operator’s Manual |

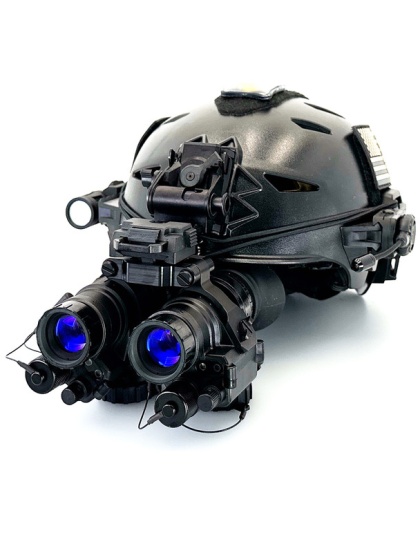

The Kit:

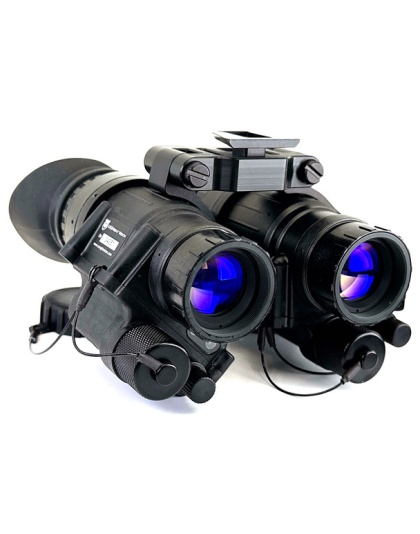

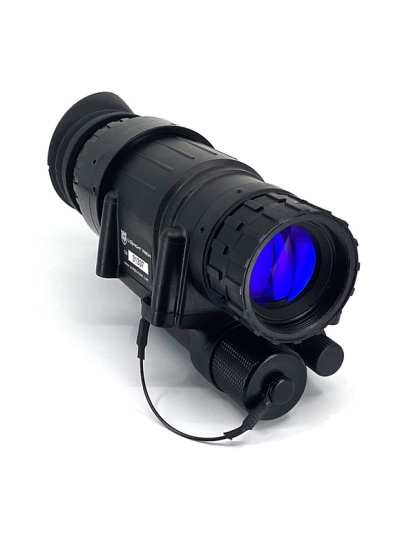

- 2 Ea. AN/PVS-14 White Phosphor / Matched Hand-Select / Crystal Clear
- Auto-Gated Dual Tube White Phosphor Performance w/ Manual Gain
- Gen III P45 White Phosphor Image Tubes w/ Data Sheets
- IC Industries Articulating Dual Bridge - Lightweight
- Team Wendy LTP Bump Helmet Blk
- Wilcox G24 Lite Dovetail Helmet Mount - Black
- Unity Tactical Spark Beacon (Green Vis)
- Counter Balance Weight

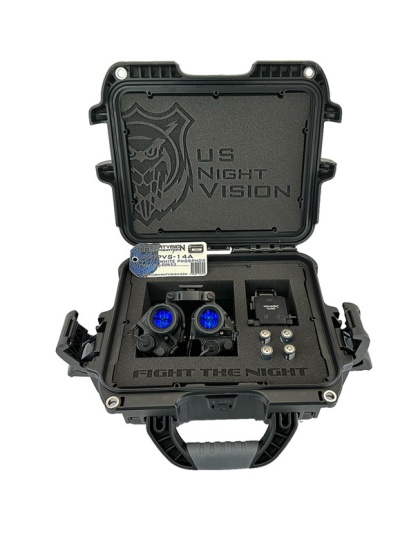

- Custom Hard Case
- Turnkey System Out Of The Box
- In Stock For Immediate Shipment
- Unit, Military Soft Case, Eye Cup, Headmount, Brow Pads, Transfer Arm, Shoulder Strap, Sacrificial Window, Demist Shield, Lens Tissue, Lanyard, Objective Lens Cover, Ops Manual, (1) AA Battery.
- Availability: In Stock
- Model: AN/PVS-14 Dual High FOM White
-
